| Quantity: | |
|---|---|
B23E175H62-72-A0
AIRTEK POWER
Various Speeds
AC230V
151-200
1000cmh
0-100W
Technical Specifications
Model | B23E175H62-72-A0 | Fan Type | EC Backward Curved Centrifugal Fan |
Voltage | 230V | Operating Voltage | 184V-276V |
Max Airflow | 670m3/h | Max Air pressure | 500Pa |
Power | 80W | Sound | 74dBA |
Operating Temp | -25°C to +60°C | Control Mode | 0-10V / PWM |
Certificate | CE,CCC,RoHS | Dimension | 175*175*94.5mm |
Package | Pallets | Mode of Operation | S1( 24 hours per day) |
Bearing | Ball bearing | Materials of Impeller | Plastic |
Operating Humidity | 5%-90%RH | Signal Output | FG(Frequency Generator) |
Insulation Class | F | Design Life Time | 50,000hours |
MOQ | 1~200 pcs based on EXW price, 200 pcs above based on FOB price | Supply Ability | 400,000pcs per year |
Application | Purifier, Ventilation Unit, Cooling Project, Data center cooling | ||

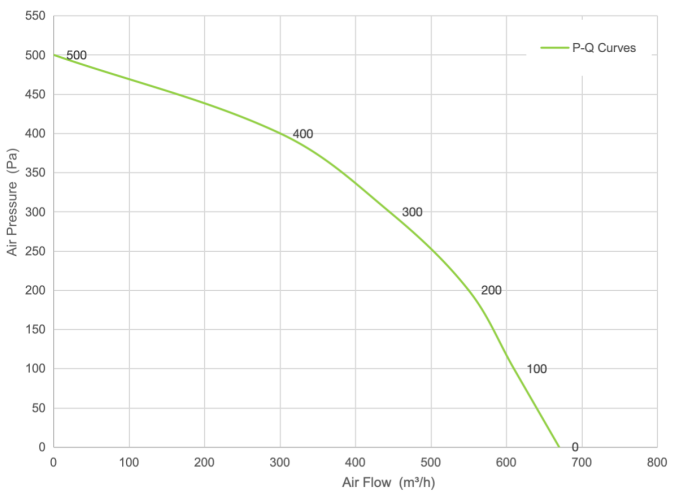

PQ Curve

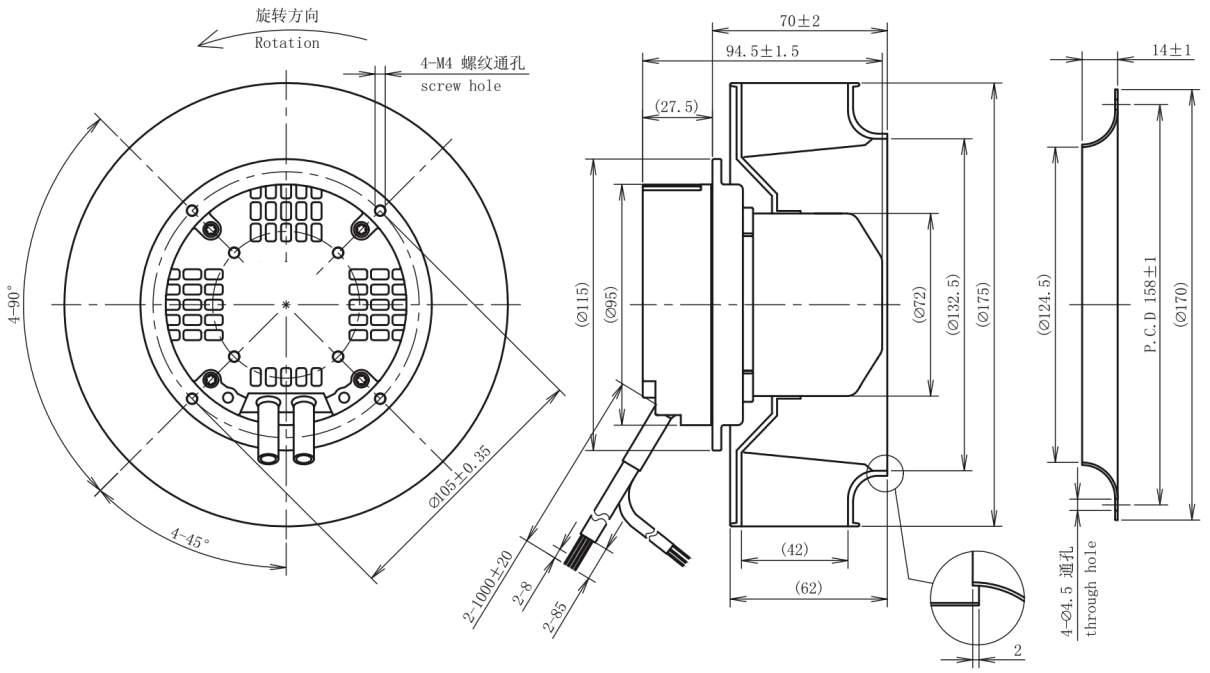

Drawing
High-Efficiency EC Backward Centrifugal Fan 175mm
Model: B23E175H62-72-A0
✅ EC Motor Technology
- Energy-saving electronically commutated motor.
- 30-50% lower power consumption vs. traditional AC fans.
- lower noise according to the high efficient.
✅ Advanced Backward-Curved Impeller
- Aerodynamically optimized Impeller.
- 85-92% static efficiency.
- Low turbulence operation.
✅ Smart Control Options
- 0-10V/PWM speed control
- Built-in temperature sensors.
✅ Robust Construction
- AMCA 210/ASHRAE 51 tested.
- Galvanized steel or stainless steel housing.
- IP44/IP55 protection.
Applications
- HVAC systems for commercial buildings.
- Industrial process ventilation.
- Cleanroom air handling.
- Data center cooling.
Competitive Advantages
- 30% Longer Lifespan.
- SKF/NMB bearings (50,000+ hours MTBF).
Whisper-Quiet Operation
- Vibration-damping mounts included.
Plug-and-Play Installation
- Standard flange connections (DIN 24194).
- 360° rotatable discharge.
- Mounting plug optional.
Company Production Line
- Company Size 50000 square meters
- People in the production Line 186 people
- R&D Engineers 28 people
- Quality Engineers 10 People
Production Line
Test Labs
Simulation test
Packaging & Delivery
- Export-standard wooden pallet.- FOB/CIF/DDU terms available.
